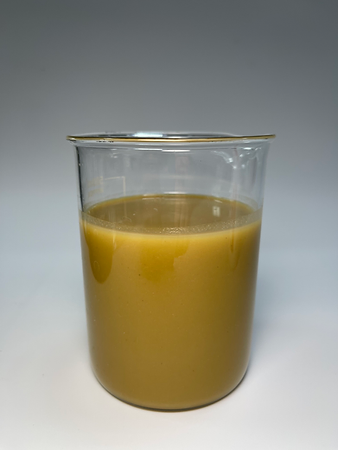

Rheology Modifier

Rheology Modifiers in Drilling Fluids

Rheology modifiers are critical additives used in drilling fluids to control and enhance the fluid's flow properties. These modifiers ensure that the fluid behaves optimally under varying conditions, maintaining the balance between viscosity, shear thinning, and suspension capabilities.

Functions of Rheology Modifiers

1. Viscosity Control:

   • Adjust the thickness of the drilling fluid to meet specific operational needs.
   • Ensure the fluid can suspend and transport cuttings effectively.

2. Shear-Thinning Behavior:

   • Allow fluids to flow easily under high shear rates (e.g., near the drill bit) and maintain a higher viscosity at low shear rates to suspend solids.

3. Hole Cleaning:

   • Improve the fluid's ability to clean the borehole by carrying rock cuttings to the surface.

4. Barite Suspension:

   • Prevent settling of weighting agents like barite, ensuring uniform density distribution.

5. Filtration Control:

   • Contribute to forming a thin, low-permeability filter cake to minimize fluid loss to the formation.

6. Pressure Management:

   • Help maintain wellbore stability by controlling fluid flow and pressure.

Types of Rheology Modifiers

1. Natural Polymers:

   • Examples: Xanthan gum, guar gum.
   • Biodegradable and effective in water-based muds.
   • Provide excellent shear-thinning properties.

2. Synthetic Polymers:

   • Examples: Polyacrylamides, polyanionic cellulose (PAC).
   • Offer enhanced performance, thermal stability, and longer operational life.

3. Clay-Based Modifiers:

   • Examples: Bentonite, organophilic clays.
   • Used primarily in water-based and oil-based muds.
   • Provide structural viscosity and aid in suspension.

4. Inorganic Additives:

   • Examples: Silica, aluminum oxide.
   • Used for high-temperature, high-pressure (HTHP) applications.

5. Nanomaterials:

   • Examples: Carbon nanotubes, graphene oxide.
   • Emerging technology for advanced rheology control in challenging drilling environments.

Key Properties Controlled by Rheology Modifiers

1. Yield Point:

   • The stress at which the fluid begins to flow. A higher yield point aids in cuttings suspension.

2. Plastic Viscosity (PV):

   • A measure of the fluid's internal resistance to flow. Controlled to optimize pump efficiency.

3. Gel Strength:

   • The ability of the fluid to form a gel-like structure when not circulating, preventing solids from settling.

4. Thixotropy:

   • The fluid's ability to regain viscosity after shear stress is removed.

Challenges in Using Rheology Modifiers

1. Temperature Sensitivity:

   • Maintaining effectiveness in high-temperature drilling environments.

2. Compatibility with Other Additives:

   • Ensuring no adverse interactions with weighting agents, lubricants, or other components.

3. Environmental Compliance:

   • Using biodegradable and non-toxic modifiers in environmentally sensitive areas.

4. Cost Efficiency:

   • Balancing performance with economic considerations.

Environmental Considerations

• Modern modifiers often focus on biodegradability and low toxicity, especially in offshore drilling.
• Regulatory frameworks, such as the EPA and OSPAR, guide the selection of environmentally friendly additives.
