Lost Circulation Material

Lost Circulation Material (LCM)

Lost Circulation Materials (LCM) are specialized additives used in drilling operations to mitigate the loss of drilling fluids into porous or fractured formations. Fluid loss, or "lost circulation," can lead to operational challenges, increased costs, and wellbore instability. LCMs are designed to plug and seal the pathways in the formation, allowing for continued drilling operations and maintaining well integrity.

Applications of LCM:

1. Drilling Operations:

   • Prevents the loss of expensive drilling fluids into porous or fractured formations.
   • Stabilizes wellbore conditions, preventing collapse or pressure imbalances.

2. Cementing Operations:

   • Seals fractures and voids before cement placement to ensure proper zonal isolation.

3. Workover and Completion:

   • Used during well repairs or enhancements to prevent fluid loss into the formation.

Types of Lost Circulation Materials:

1. Granular LCM:

   • Made of coarse particles such as ground nut shells, crushed limestone, or mica.
   • Ideal for sealing medium-sized fractures and voids.

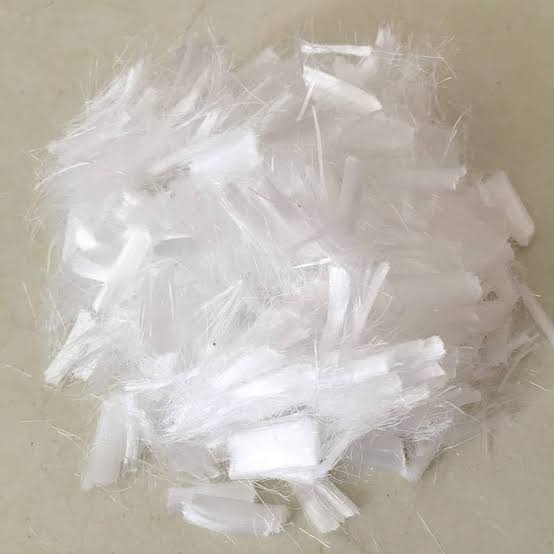

2. Fibrous LCM:

   • Includes materials like cellulose fibers, cedar fibers, or shredded plant materials.
   • Effective for bridging across larger fractures and cavities.

3. Flaky LCM:

   • Thin, plate-like materials such as mica flakes or calcium carbonate.
   • Used to seal smaller fractures and reduce permeability.

4. High-Performance LCM:

   • Includes synthetic polymers or engineered materials designed for extreme conditions.
   • Often used in high-temperature, high-pressure (HTHP) environments.

Functions of LCM:

1. Formation Sealing:

   • Blocks pathways in porous, fractured, or cavernous formations to minimize fluid loss.

2. Pressure Control:

   • Maintains hydrostatic pressure by preventing fluid escape, stabilizing the wellbore.

3. Operational Continuity:

   • Reduces downtime and non-productive time (NPT) caused by fluid loss issues.

4. Formation Protection:

   • Minimizes formation damage and preserves reservoir productivity.

Selection Criteria for LCM:

1. Formation Type:

   • Evaluate the size and nature of fractures or pores in the formation.

2. Operational Conditions:

   • Consider downhole temperature, pressure, and fluid type.

3. Compatibility:

   • Ensure the LCM is compatible with the drilling fluid and formation.

4. Particle Size Distribution:

   • Choose a blend of fine, medium, and coarse particles for effective sealing.

Advantages of Using LCM:

• Cost Savings:
  • Reduces fluid loss, saving on drilling fluid costs and operational downtime.
• Improved Well Integrity:
  • Prevents wellbore instability and maintains safe drilling conditions.
• Enhanced Operational Efficiency:
  • Enables uninterrupted drilling progress in challenging formations.
• Customizable Solutions:
  • Wide range of materials available for tailored applications.

Common Challenges and Solutions:

1. Severe Losses in Large Cavities:

   • Use a combination of granular, fibrous, and flaky LCM for optimal plugging.

2. High-Pressure, High-Temperature (HPHT) Wells:

   • Employ advanced synthetic or engineered LCM designed for extreme conditions.

3. Formation Damage Risks:

   • Choose low-damage LCM to minimize plugging productive zones.
