Fracturing Gelling Agent

Fracturing Gelling Agents

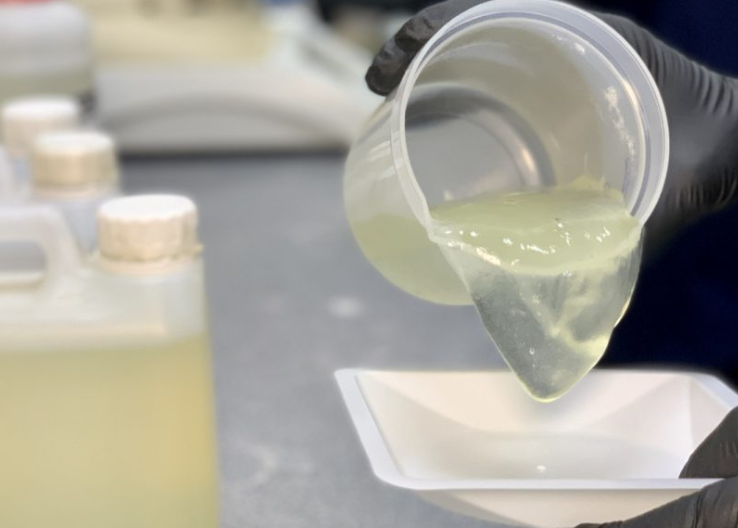

Fracturing gelling agents are chemical additives used in hydraulic fracturing fluids to increase their viscosity, enabling efficient proppant transport and fracture propagation. They are essential for creating fractures in subsurface formations and ensuring the effective placement of proppants to maintain fracture conductivity.

Functions of Fracturing Gelling Agents

1. Viscosity Enhancement:

   • Increase the fluid's viscosity to suspend and transport proppants effectively.

2. Fracture Creation:

   • Provide sufficient hydraulic pressure to propagate fractures in the reservoir rock.

3. Proppant Transport:

   • Ensure proppants are carried deep into the fractures and evenly distributed.

4. Leak-Off Control:

   • Reduce fluid loss into the formation by forming a gel layer on fracture walls.

5. Pressure Maintenance:

   • Help maintain pressure in the fracture during the pumping phase.

Types of Fracturing Gelling Agents

1. Natural Polymers:

   • Derived from natural sources, such as guar gum and its derivatives.
   • Common types:
     • Guar Gum: Cost-effective, high viscosity.
     • Hydroxypropyl Guar (HPG): Modified for better performance under high temperatures.

2. Synthetic Polymers:

   • Engineered for specific fracturing conditions, providing enhanced thermal and chemical stability.
   • Examples include polyacrylamides and polyethylene oxides.

3. Crosslinked Gels:

   • Formed by adding crosslinkers (e.g., borate or zirconium) to polymer solutions.
   • Provide higher viscosity and thermal stability compared to linear gels.

4. Viscoelastic Surfactants (VES):

   • Non-polymer-based gelling agents that form gels through micelle structures.
   • Easier to break down and reduce residue after fracturing.

Key Properties of Fracturing Gelling Agents

1. Viscosity:

   • Should be adjustable to suit formation conditions and proppant size.

2. Thermal Stability:

   • Must perform effectively under high-temperature conditions in deep wells.

3. Shear Stability:

   • Resist degradation under high shear forces during pumping.

4. Clean Break:

   • Should break down completely after fracturing, leaving minimal residue to avoid formation damage.

5. Compatibility:

   • Should be compatible with other fracturing fluid components, such as breakers, biocides, and crosslinkers.

Additives and Enhancers

1. Crosslinkers:

   • Increase the viscosity by creating a three-dimensional network within the fluid.
   • Examples: Borate, zirconium, and titanium compounds.

2. Breakers:

   • Reduce viscosity post-fracturing for efficient flowback of fluid.
   • Examples: Enzymes, oxidizers, and acids.

3. Buffers:

   • Maintain the pH required for optimal gelling and crosslinking.
   • Examples: Sodium carbonate and potassium hydroxide.

4. Stabilizers:

   • Protect the gel from thermal degradation.
   • Examples: Sodium thiosulfate and methanol.

Applications

1. Shale Gas and Oil Extraction:

   • High viscosity fluids ensure effective fracturing in tight shale formations.

2. Coal Bed Methane (CBM):

   • Low-viscosity gels are used to avoid formation damage in coal seams.

3. Deep-Water Fracturing:

   • Thermally stable gels for high-pressure, high-temperature (HPHT) environments.

4. Unconventional Reservoirs:

   • Optimize fracture design and proppant placement in complex formations.

Challenges in Using Gelling Agents

1. Residue Formation:

   • Can clog pores or reduce fracture conductivity if not properly broken down.

2. Temperature Sensitivity:

   • Natural polymers like guar degrade at high temperatures without stabilizers.

3. Shear Degradation:

   • High shear rates during pumping can reduce gel performance.

4. Environmental Concerns:

   • Synthetic gels and additives may pose ecological risks if not managed properly.

Selection Criteria

1. Reservoir Conditions:

   • Match gelling agents to temperature, pressure, and reservoir type.

2. Proppant Requirements:

   • Adjust gel viscosity based on proppant size and volume.

3. Operational Efficiency:

   • Use agents that are easy to mix, pump, and break post-fracturing.

4. Environmental Compliance:

   • Prioritize biodegradable and non-toxic options in sensitive areas.

Benefits

• Improved proppant transport and distribution.
• Enhanced fracture conductivity and hydrocarbon recovery.
• Reduced fluid loss and formation damage.
• Optimized fracturing operations with tailored gel properties.
