Cement Extender

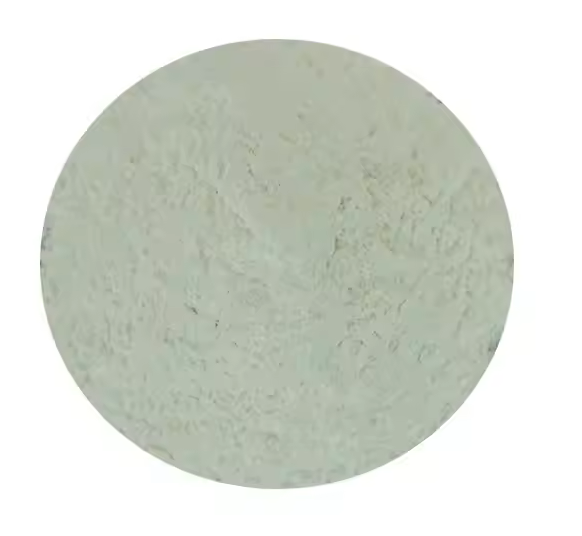

A cement extender is a chemical additive used in oilfield cementing operations to reduce the density and/or amount of cement required in the slurry. These additives help optimize cementing performance by adjusting properties such as density, strength, and set time, while also minimizing costs and improving slurry placement in challenging well conditions.

Applications of Cement Extenders:

1. Low-Density Cement Slurries:

   • Reduces slurry density to prevent fracturing weak formations.
   • Suitable for depleted reservoirs or zones with low fracture gradients.

2. Long Cement Columns:

   • Reduces the overall cement volume, enabling economical coverage of long sections.

3. High-Temperature Wells:

   • Improves cement performance under elevated temperatures by balancing hydration reactions.

4. Primary and Remedial Cementing:

   • Used in both new wells and repair operations to maintain zonal isolation.

Functions of Cement Extenders:

1. Density Reduction:

   • Lowers the slurry density to prevent loss of circulation in weak formations.

2. Volume Expansion:

   • Increases the yield of cement, reducing material usage and cost.

3. Thermal Regulation:

   • Mitigates the heat generated during cement hydration, protecting sensitive formations.

4. Set-Time Adjustment:

   • Modifies setting times to match operational requirements.

Types of Cement Extenders:

1. Pozzolanic Materials:

   • Fly Ash: Economical and effective for reducing density and improving cement yield.
   • Silica Fume: Enhances mechanical strength and reduces permeability.

2. Lightweight Aggregates:

   • Perlite: A volcanic glass material used to lower cement density.
   • Expanded Clay or Shale: Lightweight materials for controlling slurry weight.

3. Organic Materials:

   • Cellulose Derivatives: Reduce slurry density and improve suspension properties.
   • Saw Dust or Walnut Shells: Occasionally used in low-cost, non-critical applications.

4. Chemical Additives:

   • Sodium Silicate: Increases slurry volume and reduces density.
   • Foamed Cement Additives: Introduce gas bubbles to reduce density significantly.

5. Other Extenders:

   • Bentonite: A common clay extender that increases slurry yield and reduces density.
   • Microspheres: Hollow glass or ceramic spheres used for ultra-lightweight cement systems.

Key Properties of Cement Extenders:

1. Compatibility:

   • Must work effectively with the base cement and other additives.

2. Density Control:

   • Enables precise adjustment of slurry density for specific well conditions.

3. Thermal Stability:

   • Performs under high-temperature conditions without degrading.

4. Rheological Behavior:

   • Maintains slurry pumpability and flow characteristics.

5. Cost Efficiency:

   • Reduces material costs by increasing cement yield.

Design Considerations:

1. Formation Strength:

   • Ensure the slurry density is appropriate for the formation’s fracture gradient.

2. Downhole Conditions:

   • Factor in temperature, pressure, and chemical environment.

3. Additive Compatibility:

   • Verify compatibility with other additives in the slurry.

4. Performance Testing:

   • Conduct lab tests to ensure the extender achieves desired density, strength, and setting time.

Advantages of Using Cement Extenders:

• Reduced Costs:
  • Lowers the volume of cement required and extends coverage.
• Improved Zonal Isolation:
  • Optimizes cement placement and bonding to prevent fluid migration.
• Operational Flexibility:
  • Customizable for various well conditions, including high-pressure and high-temperature (HPHT) environments.
• Environmentally Friendly:
  • Reduces material usage and waste generation.
